The intelligent video behavior analyzer not only retains the advantages of embedded technology: low bandwidth for front-end analysis, fast system response, and data security without viruses; it also integrates various advantages of the platform: flexible and compatible with multiple brands, low cost of intelligent migration, and easy operation. Upgrade, security backup double guarantee.

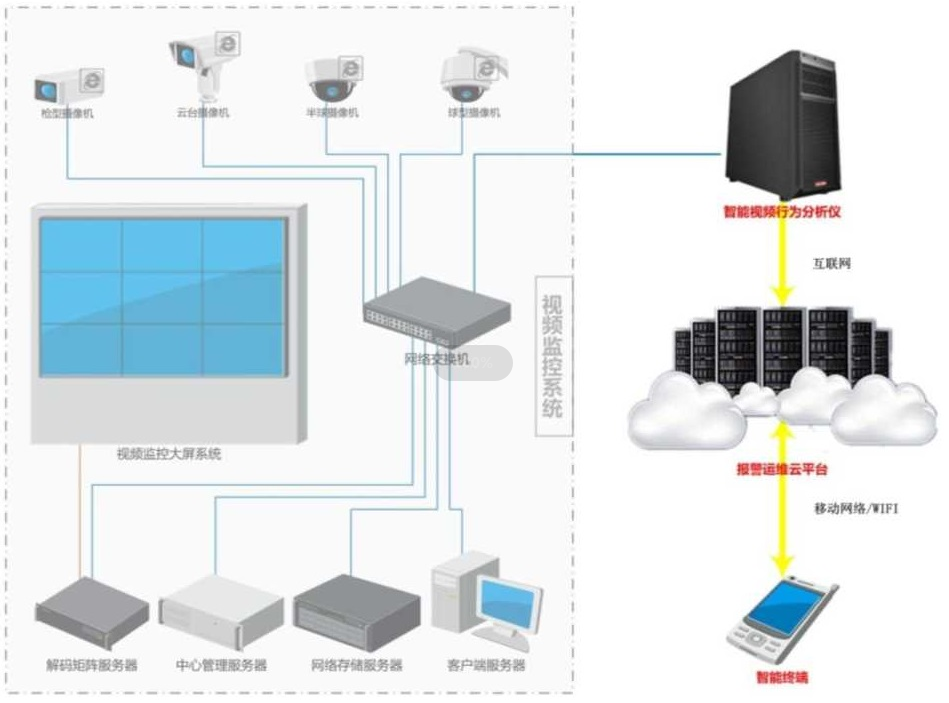

This product is also a high-performance media gateway device that integrates core functions such as streaming media protocol conversion, streaming media distribution services, and multi-channel video decoding. The content is formatted and video converted, decoded and output. Combined with cloud platform services, mobile video surveillance can be realized. The server can be used independently, or through flexible networking, it supports a large number of users and multiple concurrent server clusters.
Ø The intelligent video behavior analysis algorithm has been independently developed and has obtained multiple international invention patents.
Ø The algorithm has high accuracy with "zero missing alarm and low false alarm".
Ø The rules are comprehensive, targeted, applicable, highly sensitive, and with high recognition rate.
Ø The alarm delay is less than 1s.
Ø It supports various monitoring devices and platforms such as Hikvision, Dahua, Huawei, etc.
Ø It is fully compatible with the ONVIF and RTSP protocol.
Ø Supports multiple video decoding such as H.265/H.264/MJPEG.
Ø Supports mobile systems to play video using 3G/4G networks.
Ø Provides flexible third-party interfaces for secondary development.
Ø The platform supports management devices to access via the SDK or the ONVIF protocol.
Ø The product is designed according to industrial standards to achieve high reliability, stability, and long-term continuous operation requirements.
Product model | IVServer 6500-48CT4U |
Product name | Intelligent Video Behavior Analyzer |
CPU | Intel I7 12th generation(12 cores 20 threads)processor ,25M cache |
Memory | 32GB DDR4 3200MHz´2 |
GPU | Professional GPU with 8G memory and 2560 CUDA Cores |
Hard disk | 2TB, Surveillance-grade |
Performance | Video input | 48 channels |
Intelligent analysis | 48 channels |
Intelligent functions | perimeter intrusion | blockage of business operations | courier recognition |
area intrusion | mobile vending | shared bike recognition |
water intrusion | illegal parking | muck truck recognition |
lingering loitering | Illegal retrograde | Cat and dog recognition |
customer entry | Illegal dumping | customer flow density (heat map) |
customer exit | illegal lane change | video occlusion |
region density | littering | video loss |
region area | uncivilized dog walking |
|
gathering of people | children without supervision |
|
Video | Encoding | H.265/H.264/MPEG4/M-JPEG |
Network interface | RJ45 Ethernet |
Frame rate | 1~25/30 frames/s |
Configuration | Local or remote |
Transport protocols | TCP/UDP |
Application Protocols | ONVIF/HTTP/RTSP |
Remote upgrade | Support |
Dimensions | 570mm(L)×220mm(W)×490mm(H) |
Power consumption | 600W |
Watchdog anti-crash | USB 2.0 |
Auto Power-On | Support |
Environment conditions | Operating temperature: -10℃ to 60℃ Humidity: 0% to 90% non-condensing |
